INFORMATON
Properties
Simple plug-in installation
Quick assembly and conversion without tools
Shelves height-adjustable in 25 mm increments
for variable adaptation to the stored goods
Optimum monitoring of stocks

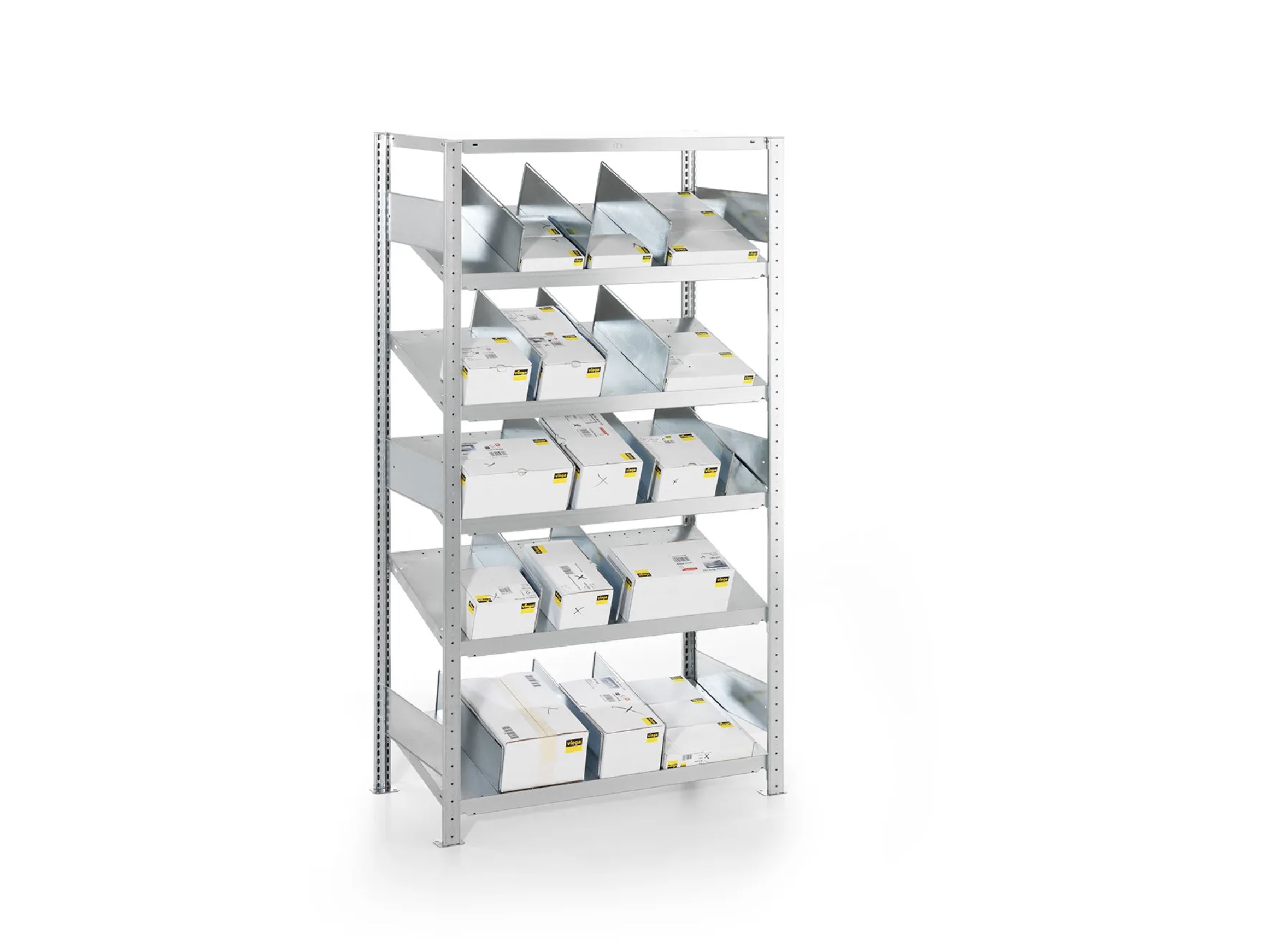

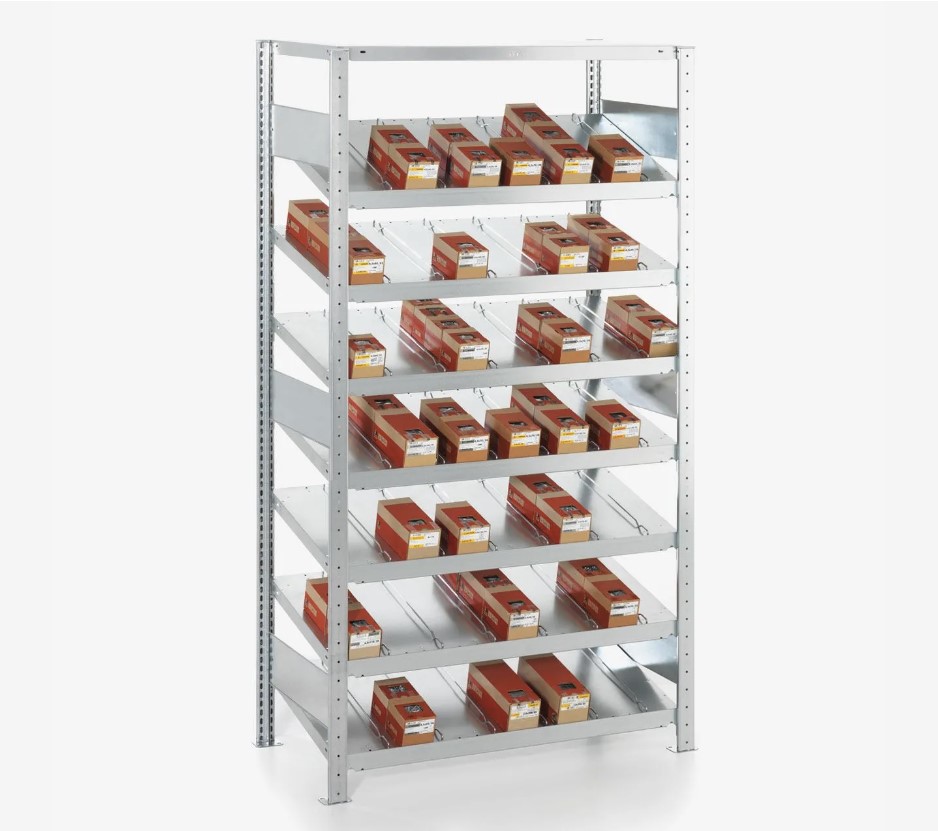

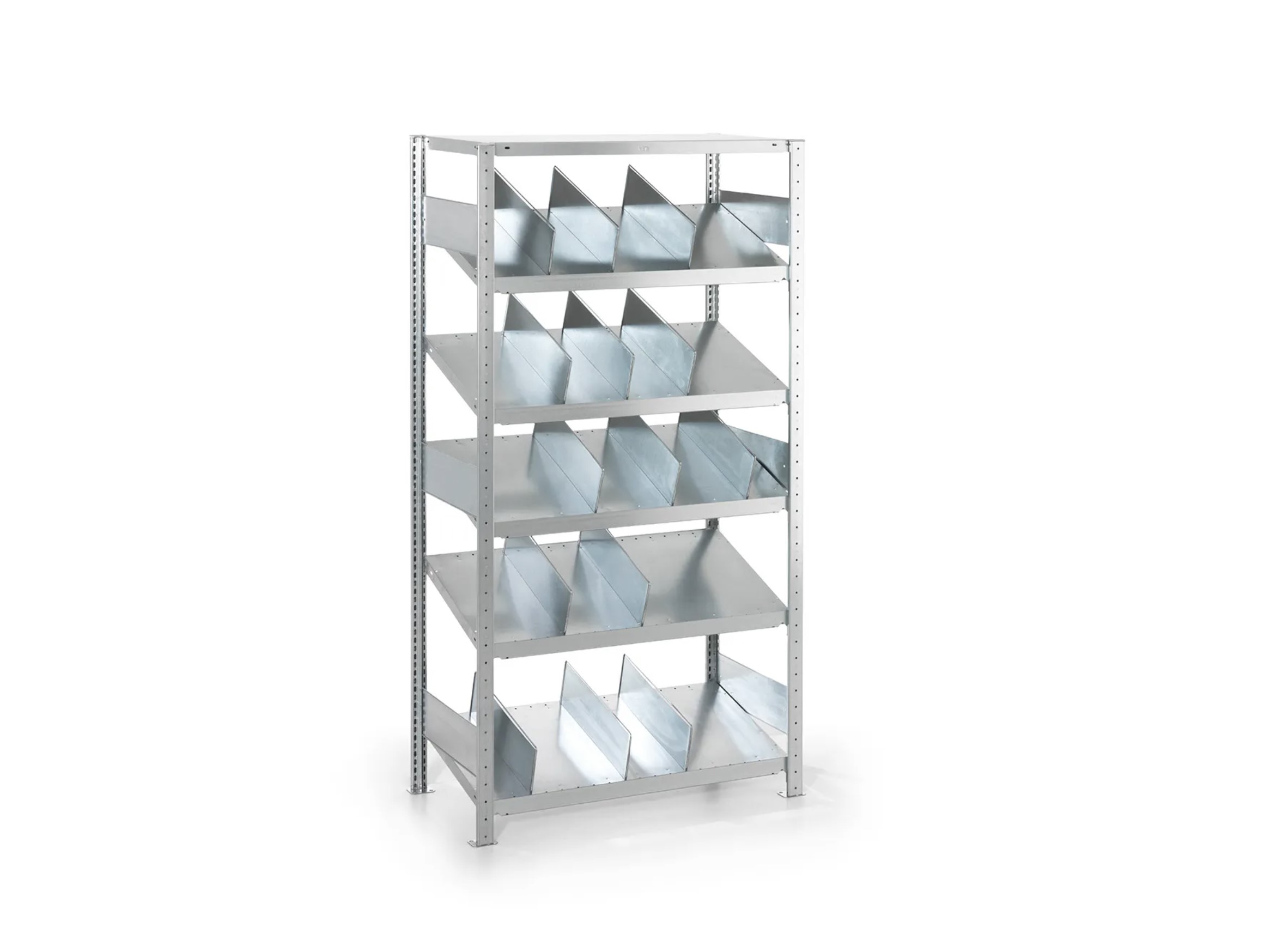

Inclination
Stored goods, such as cartons, slide automatically towards the removal side
incl. cover shelf as dust protection and additional storage space
Load Data
Shelf load up to 200 kg
Filed load up to 1,800 kg
Safety Instructions
Shelves with a height/depth ratio ≥ 4 : 1 must be secured against tipping (wall or floor anchoring).
Shelf/ bay loads apply to evenly distributed loads. Bay load specifications apply to rows of shelves with 3 or more bays.
Dimensions
Heights: 2,000 mm
Lengths: 1,000, 1,300 mm
Depths: 500, 800, 1,228 mm
